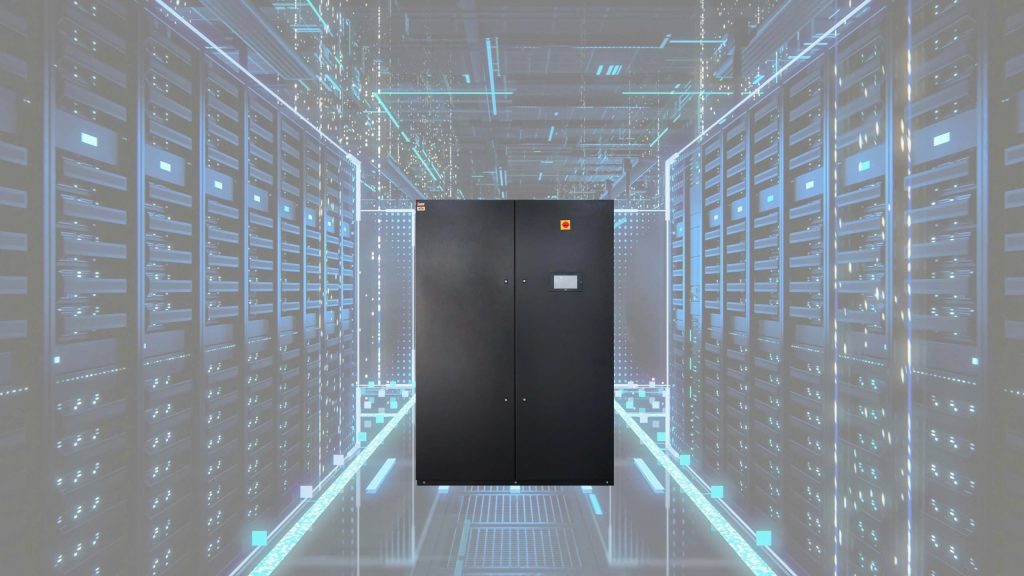

Leading-edge technology CRACs for data centers
V-Klima®DX floor standing type cooling solutions control the conditions in the data centers with the utmost precise control, reliability, and energy efficiency. Single BLDC compressor single refrigerant circuit with 20 kW to over 80 kW of Net Sensible Cooling Capacity, 5,000 m3/h to over 28,000 m3/h of airflow, there is a V-Klima®DX air conditioning unit (CRAC) for small to medium critical application.
V-Klima®DX Direct Expansion CRACs come with 2 options of Remote Air-cooled Condensing Unit or Built-in Water-cooled Plate Heat Exchanger Condenser.
- V-Klima®DX VDA Series Air-cooled Direct Expansion Floor Standing Precision Room Air Conditioner type
- V-Klima®DX VDW Series Water-cooled Direct Expansion Floor Standing Precision Room Air Conditioner type.
Feature
Flexibility and scalability
- 14 models in 2 configurations: Up-flow, Down-flow.
- Selected Remote Air-cooled Condensing Unit or Built-in Water-cooled Plate Heat Exchanger Condenser
- Selected Dual Remote Air-cooled Condensing Units for performance enhancement
- Wide range of cooling capacity from 20kW to 80kW
- Wide range of airflow from 5000 m3/h to over 28,000 m3/h
- Internally Group Control Networks for fail-safe operation
- Local or Network HMI touchscreen
- Built-in BMS connection for further integration
- Single or Dual Power supply option
Leading-edge technology
- Electronically Commutated Plug Centrifugal fans (EC plug Fans) with latest ECblue motor technology (IE5 class) and unique bionic blade design made of high-strength and high-performance composite material, statically and dynamically balanced.
- Latest Brushless DC scroll compressor with pattern “Frame Compliance Mechanism” technology enabling highest COP and wider operating envelope and running range
- Advanced oil management with latest oil level capacitive sensing technology
- Remote Air-cooled Condenser with Axial fan using latest ECblue motor technology (IE5 class) and unique bionic blade design, statically and dynamically balanced
- Optionally adiabatic condensing unit for higher energy efficiency
- Optionally high efficiency Water-cooled Plate Heat Exchanger Condenser
Advanced Controls and Energy Efficiency
- Robotic and powerful 32-bit microprocessor controller
- PI, PID algorithm controls for energy efficiency and precise control
- Optimized air flow control, optimized dehumidification and humidification control for higher energy efficiency
- Hot redundant group of units for higher system-based and unit-based energy efficiency
- Built-in and selectable supply control or return air control
Intuitive Human Machine Interface
- High resolution, 16 million colors touchscreen 7”
- Multi languages support
- Acoustic and visual alarms
- Colourful patterns for ease of monitor and operation assessment
- Optional high resolution network color touchscreen 7” or 10”
Real-time metering and performance
- Real-time information of the power load in cooling mode
- Real-time energy metering and power consumption in cooling mode
- Real-time performance monitoring in cooling mode
- Optional power meter
Expertise
V-Klima provides ideal solutions in the field of cooling and humidity control on system-based and unit-based energy efficiency and sustainability
Reliability
V-Klima is built from highest quality components by world-leading manufactures for complete reliability and fail-safe operation
Proudly Make in Vietnam
V-Klima is proud to design, manufacture and support solutions to customers in Vietnam
Premium Warranty and Service
V-Klima offers Exclusively Premium Life-time Warranty Program with 24/7/365 service and ex-stock spare parts through nation-wide network service and reliable global vendors’ network.
